SH-Mini Technical Specifications
Top Grade Filters & Parts
1st Stage Sediment Pre-Filter (Made in USA) ANSI/NSF Standard 42 & FDA
2nd Stage Class A Ion Exchange Resin (Made in England) Materials Certified by WRAS
3rd Stage Hollow-Fiber Filter, Activated Carbon Filter (Made in Japan) ANSI/NSF Standard 42
Fitting Plastic Water Tubing & Push-in Fitting (Made in England) ANSI/NSF Standard 51 & 61
Measurements
Height
400mm
Width
330mm
Depth
150mm
Installation Requirements (Outside cabinet)
Water Supply
- 12mm copper pipe
- With switch
Extra Notes (Installation inside cabinet)

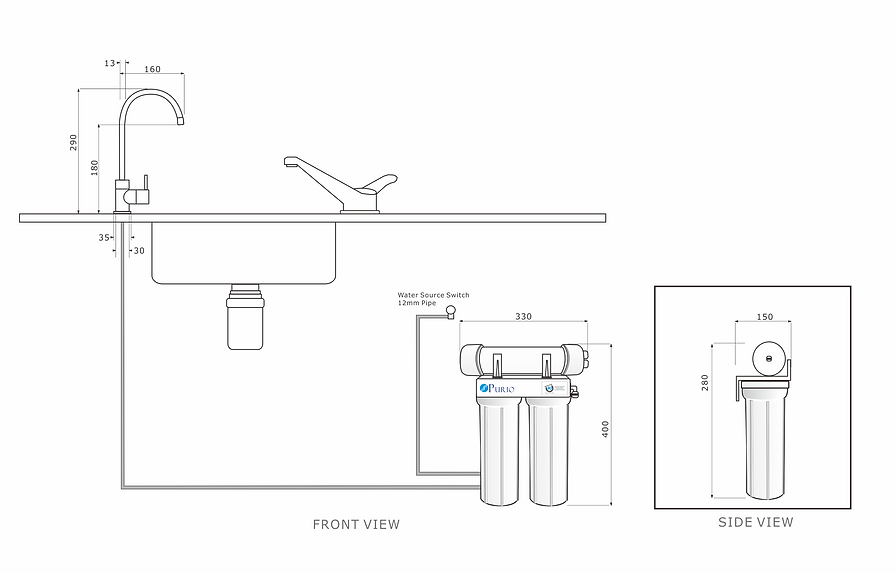

Installation Diagram
1. Desk hole 12mm diameter.
2. Minimum Clearance – Top 50mm / Left 50mm / Right 50mm / Back 50mm.
